Manual palletizing aids

Pallet positioners, turntables, vacuum tube lifters, and lift tables for hand palletizing. NIOSH lifting guidance, real models, prices, and when to add a cobot.

Updated October 2, 2026

Many small plants still stack pallets by hand. Manual palletizing aids cut bending, reaching, and lifting. They cost far less than an automatic palletizer. This guide covers pallet positioners, turntables, vacuum tube lifters, and lift tables. It also covers what NIOSH says about safe lifting and when to move to a cobot.

Why hand palletizing causes injuries

Building a pallet by hand means lifting at every height. The first layer sits near the floor. The top layer may be above the shoulders. Workers also twist and reach across the pallet.

NIOSH (the National Institute for Occupational Safety and Health) and Cal/OSHA give a simple rule. Work within the “power zone.” In their manual material handling guide, the power zone is “above the knees, below the shoulders, and close to the body.” The guide also says to “Position pallet loads of materials at a height that allows workers to lift and lower within their power zone.”

The NIOSH lifting equation

The NIOSH lifting equation sets a recommended weight limit (RWL) for one lifting task. Thomas Waters of NIOSH explains it in a book chapter posted by CDC:

• The RWL is “the weight of the load that nearly all healthy workers could perform over a substantial period of time (e.g., up to 8 h) without an increased risk” of low back pain.
• It starts from a load constant of 51 lb (23 kg) for an “ideal” lift. Six factors then lower it. They cover reach distance, height, travel, twisting, how often, and grip.
• The lifting index (LI) is the load weight divided by the RWL. NIOSH says tasks with “LI > 1.0 pose an increased risk” for some workers. Jobs “should be designed to achieve an LI of 1.0 or less.”
• Even experts who allow worker selection agree that “many workers will be at a significant risk” when LI is above 3.0.

The same chapter says to “Avoid lifting near the floor or above the shoulders.” That is exactly what a full pallet asks of a worker. The aids below fix those heights. To run the full math for your job, use the NIOSH Applications Manual and its app.

Pallet positioners and turntables

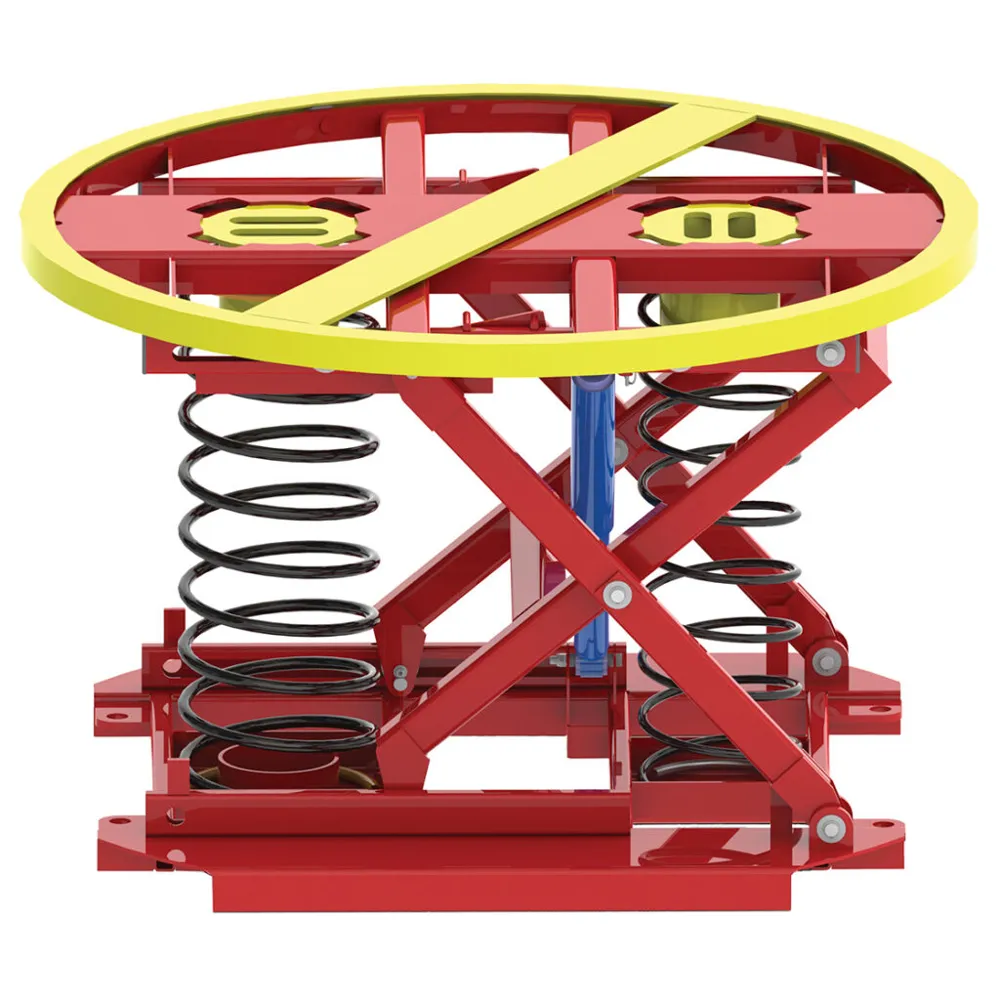

A pallet positioner, also called a load leveler, holds the pallet on springs or air. As cases go on, the pallet sinks. The top layer stays near the same working height. Most have a turntable on top. The worker spins the pallet to reach each side.

The Uline price was seen October 2, 2026. It excludes freight. Uline sells the pinch-point safety skirt separately. Weigh a full pallet before you pick a model. Check that the full load and the empty pallet both fall inside the rated range.

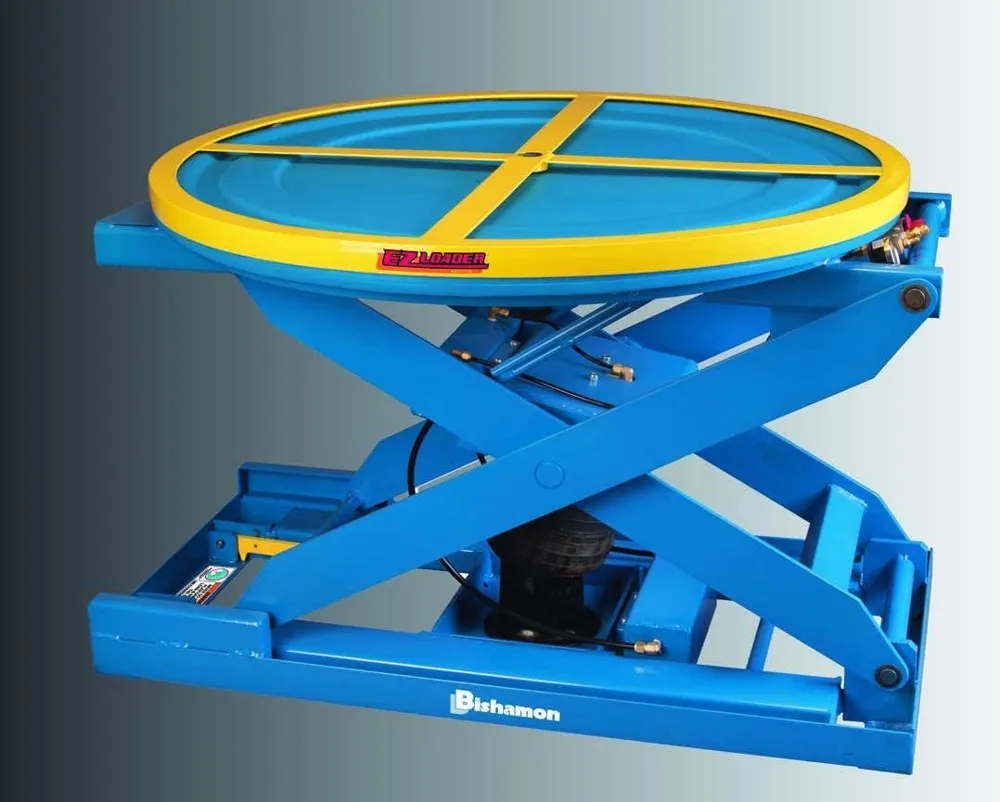

The NIOSH guide adds a tip for turntables. Rotate the turntable “occasionally to avoid the buildup of the load on one side.” It also says to “Always work from the side closest to the load.” Bishamon lists a “Top Shield” that “Eliminates Pinch Points.” Keep hands clear of the scissor frame.

Vacuum tube lifters

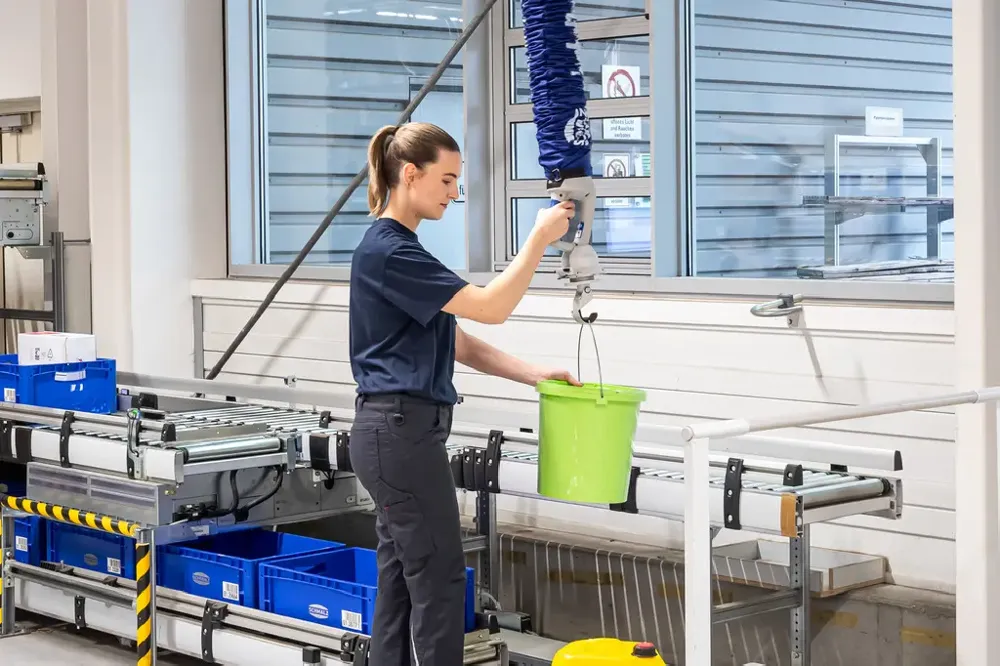

A vacuum tube lifter hangs from an overhead crane or jib arm. A suction pad grips the case. The tube shortens to lift and lengthens to lower. The worker guides the case with a handle. The lifter carries the weight.

• Schmalz rates its JumboFlex at 20, 35, or 50 kg maximum load, by model. Schmalz lists a “Max. lifting speed” of 60 m/min. It names cardboard boxes, bags, crates, and palletizing among its uses.
• Anver lists its VT90 and VT100 at 95 lb (43 kg) and its VT250 at 470 lb (213 kg) for non-porous loads. Anver warns that “Actual system capacities are dependent on several factors (load surface porosity, load density, vacuum station, pad attachment, etc.).”

Porous loads, such as paper bags or some corrugated boxes, leak air. They lower the safe capacity. Test your real cases with the supplier.

The NIOSH guide says vacuum lifters “can handle sacks and bags that are hard to grip by hand.” It adds that some two-handle models “work best for lifts performed below mid-chest height within the power zone.” Pair a vacuum lifter with a pallet positioner for the best result. The lifter takes the weight. The positioner keeps the height right.

Lift tables

A scissor lift table raises the pallet or the case supply to a set height. It does not self-level like a positioner. The worker or a control raises it as the load changes. The NIOSH guide lists “scissors lift tables or load levelers” as lift-assist devices. Use a lift table to bring incoming cases to waist height. Use a positioner for the pallet.

Safety with lift aids

Lift aids have their own hazards. Check these before you buy:

• Pinch points. Positioners have scissor frames and springs. Uline sells a safety skirt for the H-8935 separately. Bishamon lists a “Top Shield” for the EZ Loader.
• Springs. Springs hold stored energy. Uline says “Safety locks secure springs.” Add or remove springs only as the maker’s manual says, with the springs locked and the platform unloaded.
• Vacuum lifters. A vacuum tube lifter is a below-the-hook lifting device. ASME B30.20 has a chapter on vacuum lifting devices. The crane or jib must be rated for the lifter plus the load. Ask the supplier what the lifter does if power or vacuum is lost. Schmalz offers a “Safety+” JumboFlex with “two-handed operation for release.”
• Lift tables. Never work under a raised table without its maintenance device or blocks in place. The scissor lift standard, ANSI MH29.1, says “A blocking or maintenance device can be used to prevent unintended movement.”

Which aid fixes which problem

When to move to a cobot

Aids lower the risk. They don’t remove the work. Consider a cobot palletizer when:

• Your lifting index stays above 1.0 even with aids.
• Your heaviest case fits the cobot’s rated payload. Check this first. Heavier cases need a robotic palletizer or a vacuum lifter.
• One or more people spend most of each shift palletizing.
• Volume keeps growing, or you add a second shift.

Robotiq rates its PE20 cobot kit at “up to 13 picks per minute” for cases up to 18 kg (40 lb). Universal Robots rates the UR20 arm at 20 kg, or 25 kg extended. Automation Distribution listed the PE20 kit at $49,429.69 in October 2026, without the robot or gripper. Full cobot cells with a public price started at $64,999 for the Optamate CPS30P, with fencing, scanners, and the infeed conveyor extra. MMCI lists cobot palletizers “starting at $100,000.”

A cobot is not safe near people just because it is a cobot. Universal Robots says “Cobots alone are not collaborative, only cobot applications can be collaborative.” A risk assessment of the whole application decides what guarding it needs. That covers the gripper, the load, the pallet stations, and nearby people. Current rules are in ISO 10218-2:2025 and its US adoption, ANSI/A3 R15.06-2025. The 2025 editions fold in the collaborative guidance from the older ISO/TS 15066. These are consensus standards, not OSHA rules. Lock out the cell under OSHA 29 CFR 1910.147 before service or jam clearing. See how a risk assessment works.

For more choices, compare palletizer types and check palletizer costs.
