Palletizer safety

Palletizer hazards, OSHA rules, ANSI/A3 R15.06 and ISO 10218 robot standards, guarding types, lockout for jams, training, and safe fixes for common faults.

Updated October 2, 2026

Palletizers move heavy loads with hoists, conveyors, and robot arms. The OSHA manual cites studies that found many robot accidents do not happen in normal running. They happen during programming, maintenance, setup, or adjustment. This page covers palletizer hazards, US rules and standards, guarding types, risk assessment, safe entry, and training. It ends with common faults and how to fix them safely.

This is a guide, not legal advice. Your machine’s manual, your integrator, and your safety staff have the final word for your site.

Hazards on robotic and conventional palletizers

The OSHA Technical Manual groups robot hazards into types. These apply to robotic palletizers:

• Impact and collision. OSHA lists “Unpredicted or unexpected movements, component malfunctions, or unexpected program changes” as causes.
• Crushing and trapping. A limb can be “trapped within or between a robot, end-effector, or workpiece” and other equipment.
• Struck by parts or loads. OSHA lists “Parts release” and “gripper mechanism failure” as sources. On a palletizer, that means a dropped case or bag.

Rockwell Automation’s palletizer functional safety guide lists hazards by zone. Rockwell is a maker of safety controls. Its list covers conventional and robotic palletizers:

Pinch points. Conventional palletizers form layers with turners, pushers, and a stripper plate. Each one closes on the product and can close on a hand. The hoist lowers the full load and can trap anyone beneath it. See how layer forming works.

Falling loads. A full pallet is heavy and tall. A poor pattern or a failed slip sheet can drop cases from the top layer. See how patterns affect stability.

OSHA rules that apply

OSHA’s robotics page says “There are currently no specific OSHA standards for the robotics industry”. OSHA uses its general rules instead. Its robotics standards page lists them.

General Duty Clause. Section 5(a)(1) of the OSH Act says each employer “shall furnish to each of his employees employment and a place of employment which are free from recognized hazards”. OSHA can cite it when no specific rule fits.

Machine guarding, 29 CFR 1910.212. The rule says guarding “shall be provided to protect the operator and other employees in the machine area”. It names hazards such as “point of operation, ingoing nip points, rotating parts”. Examples it gives are “barrier guards, two-hand tripping devices, electronic safety devices”.

Lockout/tagout, 29 CFR 1910.147. The rule covers servicing and maintenance where machines could start up or release energy. Lockout means shutting off and locking every energy source. That includes electric power, air, hydraulics, and gravity.

Work during normal production is covered by the lockout rule in two cases. The first is when a worker must “remove or bypass a guard or other safety device”. The second is when a worker must place “any part of his or her body” into the point of operation or “an associated danger zone”.

The rule has a narrow exception. It covers “Minor tool changes and adjustments, and other minor servicing activities” during normal production. The work must be “routine, repetitive, and integral to the use of the equipment for production”. It must also use “alternative measures which provide effective protection”. All of those conditions must be met. Treat jam clearing inside a robot cell or under a hoist as covered by lockout. The exception applies only if your safety staff has shown each condition is met.

Two consensus standards help here. ANSI/ASSP Z244.1-2024 covers “Lockout, Tagout, and Alternative Methods,” per ASSP’s technical brief. ASSP says alternative methods must be “based on a risk assessment and the hazard control hierarchy.” ANSI/A3 R15.06-3-2025 (Part 3) sets safety requirements for users of robot cells. Ask your integrator how Part 3 applies to jam clearing in your cell. Neither standard replaces the OSHA rule.

Robot and machine safety standards

These are consensus standards, not OSHA rules. OSHA’s standards page says “These are NOT OSHA regulations. However, they do provide guidance”.

The OSHA manual uses the 2011 terms for collaborative methods. The 2025 editions rename some of them. For example, “safety-rated monitored stop” became “monitored standstill,” per The Robot Report. They also add “Updated robot classifications.” Ask the integrator which edition your cell was assessed to.

Keyence, a safety sensor maker, defines PL as “the ability of safety-related parts of control systems to perform a safety function under foreseeable conditions”. In its table, PL e has the lowest chance of a dangerous failure. Keyence says the PL achieved “must be equal to or higher than the required performance level (PLr)”. Light curtains, door interlocks, and scanners are all part of safety functions with a PL. Rockwell says the circuits in its guide meet “PLe (Performance Level) to (EN) ISO 13849-1: 2015”. That is the older edition.

Cobots. A cobot is not safe to stand beside just because of its label. The OSHA manual says force and power limits “are to be determined by a risk assessment”. The whole application counts, including gripper, load, and speed. See cobot palletizers.

Guarding types

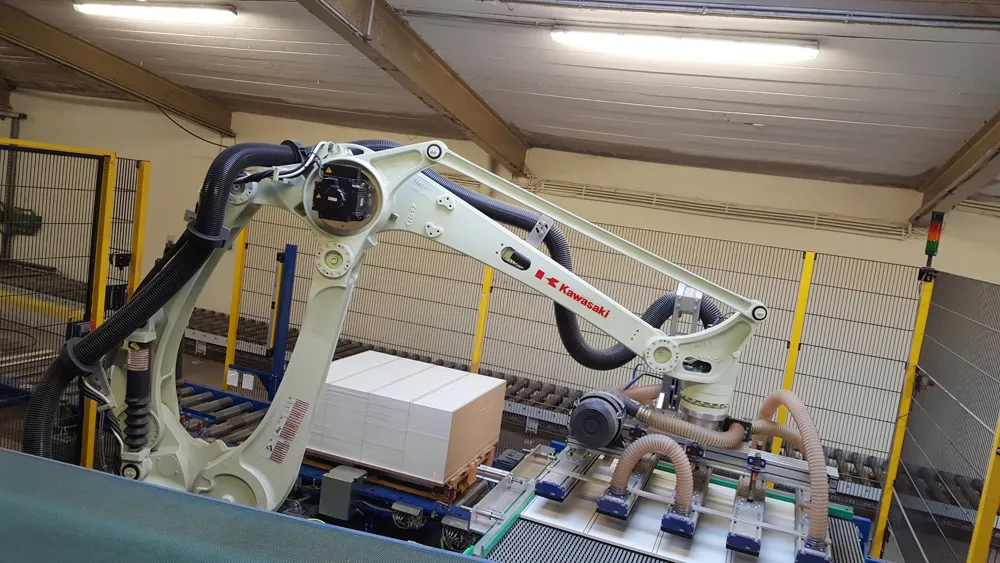

Most robot cells use several layers of guarding. The OSHA manual lists “Presence-sensing safeguarding devices”, “Fixed barrier/perimeter guards”, and “Interlocked barrier guards”. It also lists “Awareness Devices” such as rope barriers, lights, and horns. It says awareness devices “are used in conjunction with other safeguarding devices”.

Fence height. Rockwell’s guide cites European standard EN 415-10:2014. It says fixed guards “shall be at least 2000 mm high” from the floor “to discourage operators climbing over”. It points to ISO 13857:2008 for reach distances. The current edition is ISO 13857:2019. Troax, a fence maker, reprints its reach-over table in a safety guide. Troax says “Protective structures lower than 1,400 mm should not be used without additional safety measures.” The table links fence height, hazard height, and the distance from fence to hazard. A lower fence must sit farther from the hazard. Troax also says the gap under the fence “SHALL NOT EXCEED 180 MM,” per ISO 13857:2019, clause 4.4. Ask the integrator to show the reach-over check for your cell.

Safety distance for light curtains and scanners. A light curtain or scanner must sit far enough from the hazard. The machine has to stop before a person can reach it. SICK, a sensor maker, gives the ISO 13855 formula in its muting white paper. It is “S = (K × T) + C.” S is the minimum distance. K is the approach speed of a person. T is the “stopping/run-down time for the overall system.” C is a penetration distance that depends on the sensor’s detection capability. The US method is in ANSI B11.19. Its preview lists an annex on “Safety Distance Calculations” and a table of “Measured stopping times.” Use the measured stopping time of the robot or hoist, not a catalog value. Measure it again after any change to speed, payload, or brakes.

Muting for pallet exit. A full pallet has to leave the cell through the guard. Muting lets it pass. OSHA’s manual defines muting as “The deactivation of a presence-sensing safeguarding device during a portion of the robot cycle”.

Rockwell describes a two-sensor muting setup. The pallet “must block the sensor MS1 and then MS2 within the configured time limits” before it reaches the light curtain. A person who breaks the light curtain without that sequence trips a stop. Rockwell adds that “an incorrect sequence” or “excessive time” in the muting zone also stops the machine. Never block a muting sensor to keep the line running.

Sensor logic alone is not enough. SICK lists the rules for a safe muted opening:

• “it shall not be possible to access the hazardous area” while muting is on. The load itself should block the opening.
• Sensors must detect “the material being transported and not the material carrier.” That way a person riding on a pallet is still detected.
• Sensors must sit close enough that “persons cannot get through into the hazardous area by going immediately in front of or behind the material.”
• Muting “shall end immediately after the material has passed through.”

In practice, that means fixed guards or a tunnel beside the opening, so no one can walk out next to the pallet. Rockwell’s design uses a muting lamp. If the lamp burns out, the relay “does not mute the light curtain.” The lamp is on solid while muting is active.

Risk assessment

A risk assessment lists every task on the machine. For each one it rates how badly someone could be hurt and how often. Then it picks guards and procedures to bring the risk down. The OSHA manual says the assessment for each stage “should also be documented for future reference”. It walks through an example based on RIA TR R15.306.

Cover every task, not just normal running. Include setup, pattern changes, jam clearing, cleaning, pallet and sheet loading, and maintenance.

The OSHA manual describes a “3-step approach” used in robot standards. The safety duties fall first on the machine maker, then on the integrator, then on the employer. If you integrate a robot yourself, you take on the integrator’s duties. OSHA says employers “acting as integrators” should “meet the integration requirements”.

ISO 12100 uses a different “3-step method” for reducing risk. Keyence lists its steps as “Inherently safe design measures,” then safeguarding, then “Information for use,” on its safety page. Design the hazard out first. Then guard it. Then warn and train.

Repeat the assessment after any change. That includes a new gripper, a faster speed, a new pallet station, or a moved scanner. For safety questions to ask suppliers, see the buying guide.

Jam clearing and safe entry

Most palletizer jams happen in the infeed, the layer former, the pallet dispenser, or at the gripper. The urge is to reach in and free it fast. The OSHA manual names “Time Pressure” as a hazard source. It says rushed workers can miss “critical safety functions”.

The OSHA manual lists real robot accidents. In one, a worker “cleaned the optical surface of a photobeam reflector (sensor) while in automatic mode”. The sensor then told the robot to resume, “and the worker was struck”. In another, a coworker “accidentally tripped the power switch” while a maintenance worker was in the cell. OSHA lists “Lockout/tagout was not applied or was not properly applied” as a possible cause.

A safe entry follows these steps. Use your written, machine-specific lockout procedure under 29 CFR 1910.147.

1. Tell affected employees that you are about to lock out the machine. The rule requires this “before the controls are applied.”
2. Stop the machine with its normal stop control.
3. Set down any load on the gripper. Lower the hoist, a raised layer, or the lift column to rest, or block it.
4. Shut off and lock every energy source. Include electric, compressed air, and hydraulic power.
5. Bleed off stored air and vacuum. The rule says stored energy “shall be relieved, disconnected, restrained, and otherwise rendered safe.”
6. Check that nothing can move. Try the start control, then return it to off.
7. Clear the jam. Remove loose cases and broken product.
8. Remove tools, close guards, and check that all people are out.
9. Remove locks. Each person removes their own.
10. Tell affected employees that the locks are off. The rule requires this “before a machine or equipment is started.”
11. Restart under your procedure.

Vacuum and air grippers can drop their load when air is removed. Some clamp grippers open. That is why the load comes off the gripper before you shut off air.

Never bypass guards, interlocks, light curtains, or area scanners. Do not climb fences or ride conveyors. Do not stand under a raised load.

Tasks done with power on

Some tasks need power on. Teaching a robot, touching up a point, and some fault recovery are examples. Lockout is not possible for these. The OSHA manual says safety then relies on “manual mode while using an enabling device (often integrated into the teach pendant) with the robot operating at a reduced speed.”

• Reduced speed. OSHA says robot speed should be “10 inches per second (250 mm/second) or less” during teaching.
• Enabling device. OSHA says it is “typically a 3-position device.” The person must hold it in the center position, or motion stops.
• One person in control. OSHA says “the teacher must have control of the robot and associated equipment.” Keep the pendant with that person.

These rules apply only to tasks that need power. Jam clearing does not. Use lockout for it.

Training

The lockout rule sets training duties in 1910.147(c)(7). “Authorized” employees, who apply locks, need training on “hazardous energy sources” and “the methods and means necessary for energy isolation and control”. “Affected” employees, who run the machine, must learn “the purpose and use of the energy control procedure”. All others in the area must learn not to restart locked-out machines.

The rule also sets these program duties:

1. Written procedures, (c)(4). Procedures “shall be developed, documented and utilized” for each machine. A palletizer has several energy sources, so it needs its own.
2. Periodic inspection, (c)(6). The employer must inspect each procedure “at least annually.” Someone other than the person using the procedure does it.
3. Group lockout, (f)(3). A crew working one cell needs a procedure that gives each person protection “equivalent” to a personal lock.
4. Shift changes, (f)(4). Lockout protection must carry over between “off-going and oncoming employees.”

The OSHA manual says operators and maintenance staff “should understand and have general working knowledge of robot system and application safety standards”. Train on the actual machine. Cover normal stops, emergency stops, safe entry, and how to read fault codes. Retrain when the machine, pattern, or procedure changes.

Common faults and safe fixes

Lock out the machine before reaching into any part of it. Each fix below assumes lockout first, unless the fix is done from outside the guard at the HMI (touch screen). Follow your machine manual for exact steps.

If a fault keeps coming back, find the root cause. Repeated jams push people to take shortcuts. Track faults by type and shift. Fix the worst ones first with the integrator or maker.
